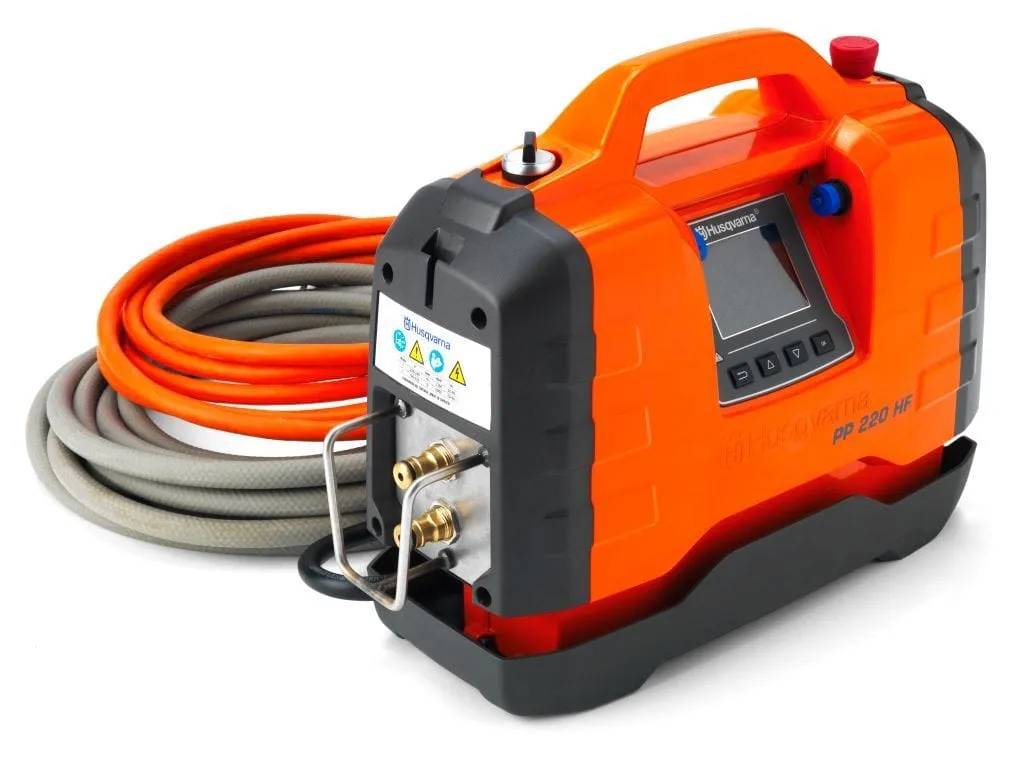

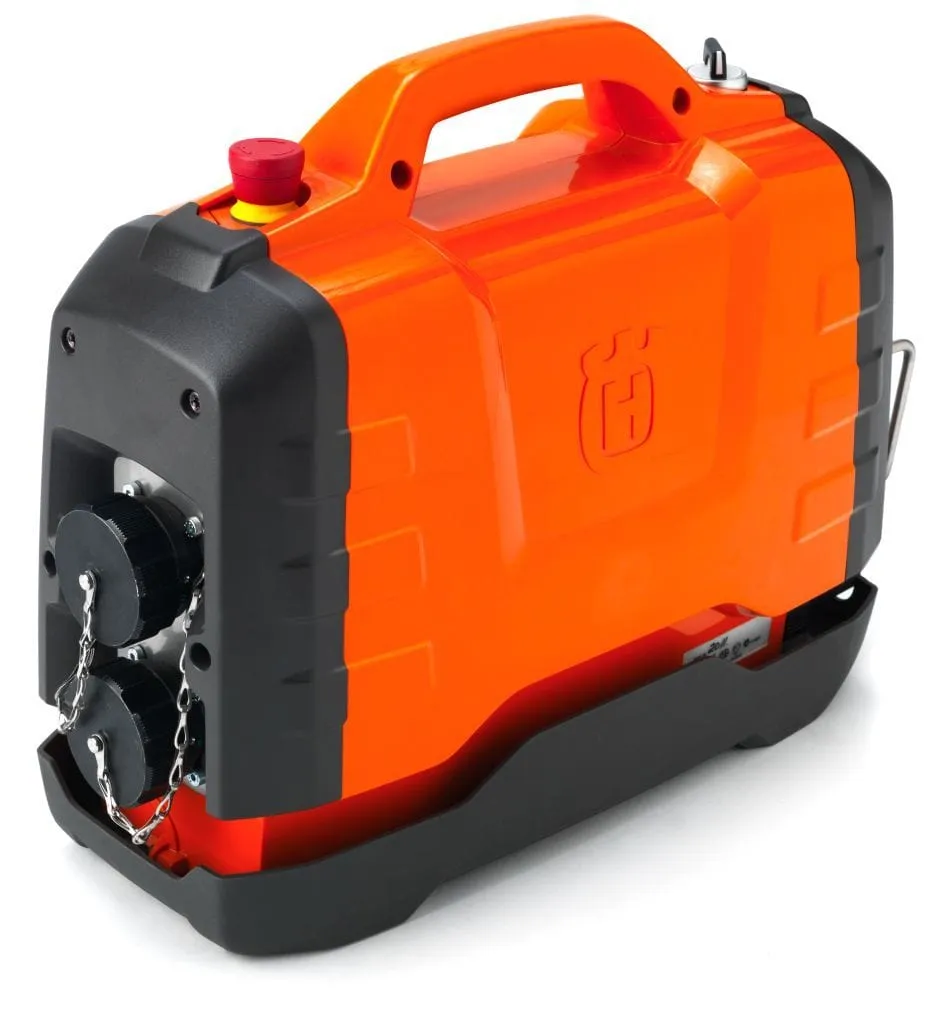

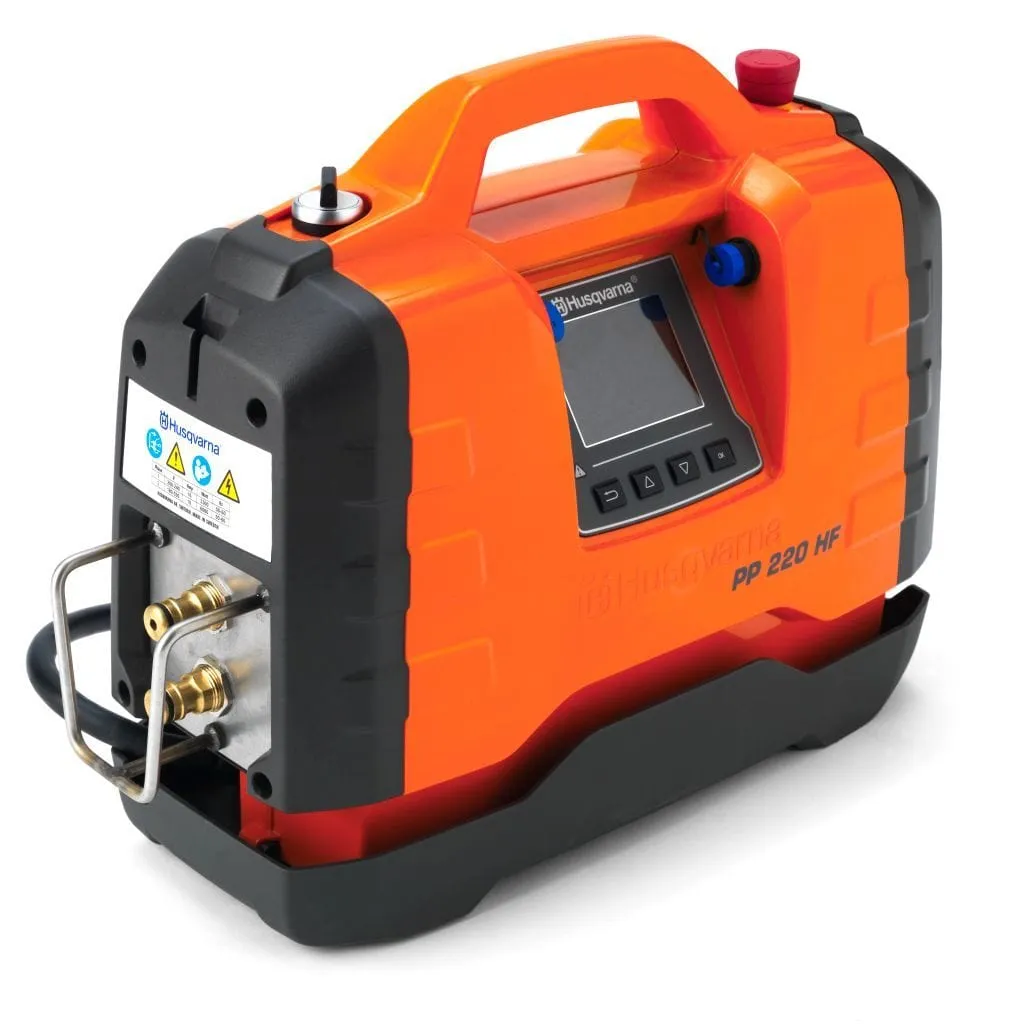

PP220 HUSQVARNA PRIME POWER PACK
Applications

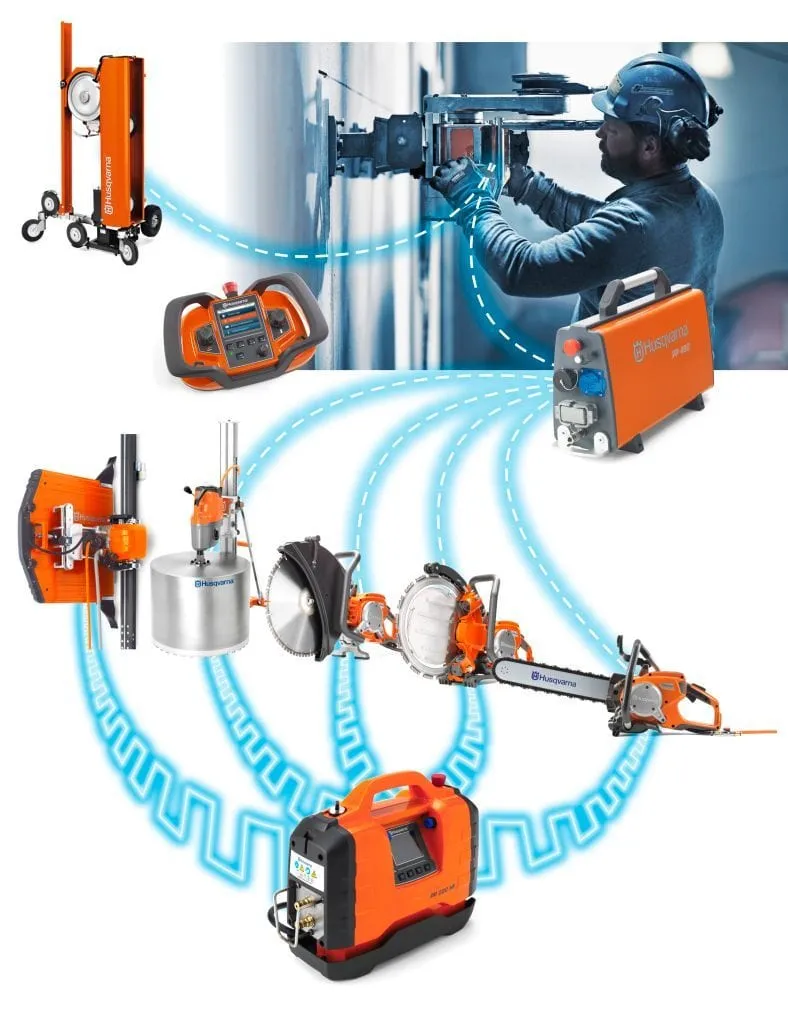

- Water-cooled electric high frequency power pack for the WS220 wall saw, DM650 drill motor, K6500, K6500 Ring and K6500 Chain power cutters.
- Perfect for applications that have multiple cutting sites due to its low weight and compact design.
Benefits
- A powerful, high frequency power pack providing fast and accurate adjustment for each operating condition.
- There is only one cable and one hose from converter to machine, which simplifies setup and transport.
- Automatic detection and setup of connected equipment and the power source make handling easy.
- In order to use K7000 PRIME equipment with PP220 - need adapter # 596263102
TECHNICAL SPECIFICATIONS
| Power 3-phase / 1-phase, hp | 8.7 / 4.7 |
| Rated current, amp | 10 / 16 |
| Voltage 3-phase / 1-phase, v | 200-480 / 226-240 |
Cooling | Water |
Weight, lbs | 24 |
Minimum recommended generator, kW | 10 |
Notice! Good motor performance depends on proper voltage. Extension cables that are too long and/or which have a gauge that is too small, reduces power to the motor under a load, resulting in reduced output or malfunctions.
*Always read generator OM and follow national and local electrical codes.
