| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Panel Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 1.5 A |
| Output Power | 36 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Embedded |
| Voltage, Input Range | 100-264 VAC |
Overview

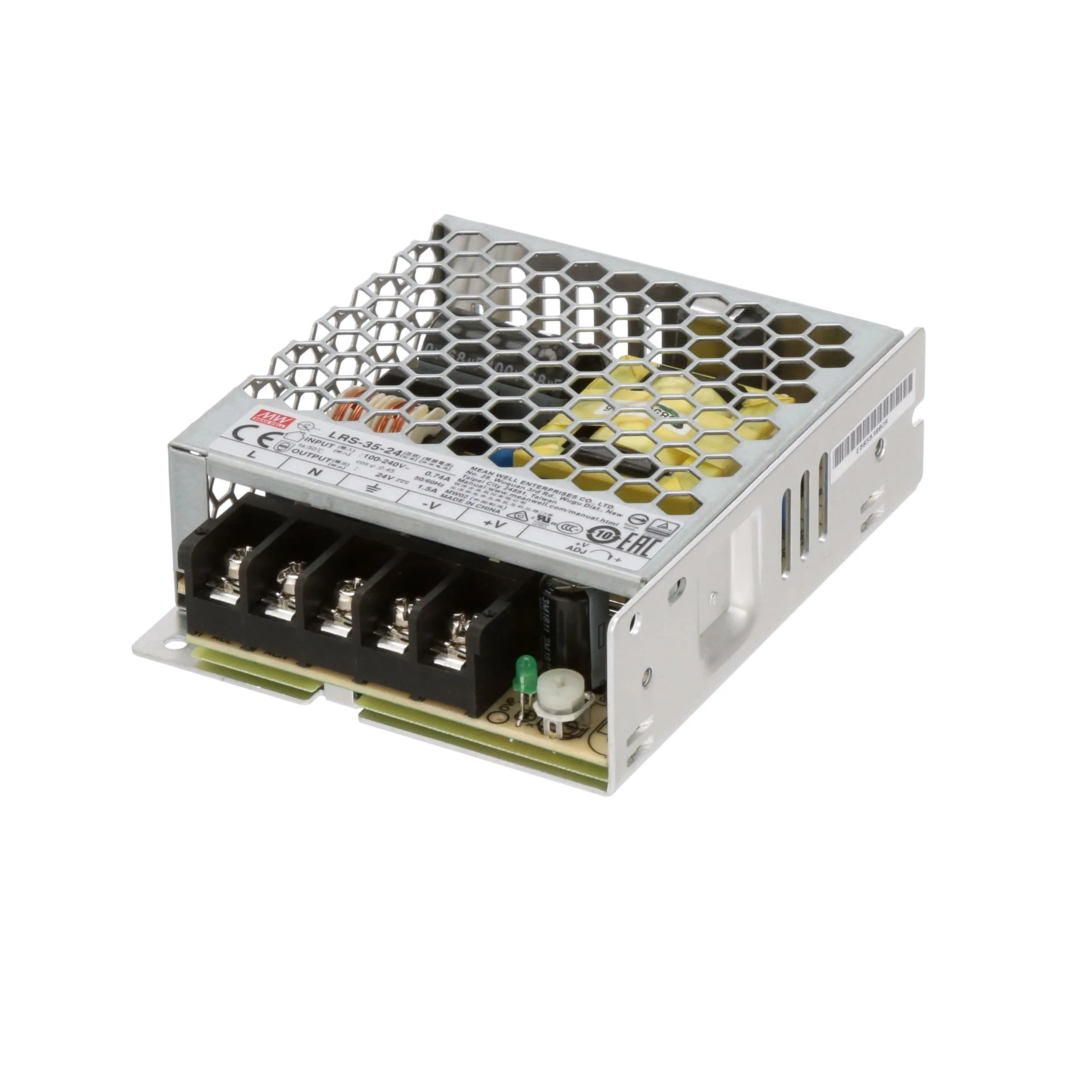

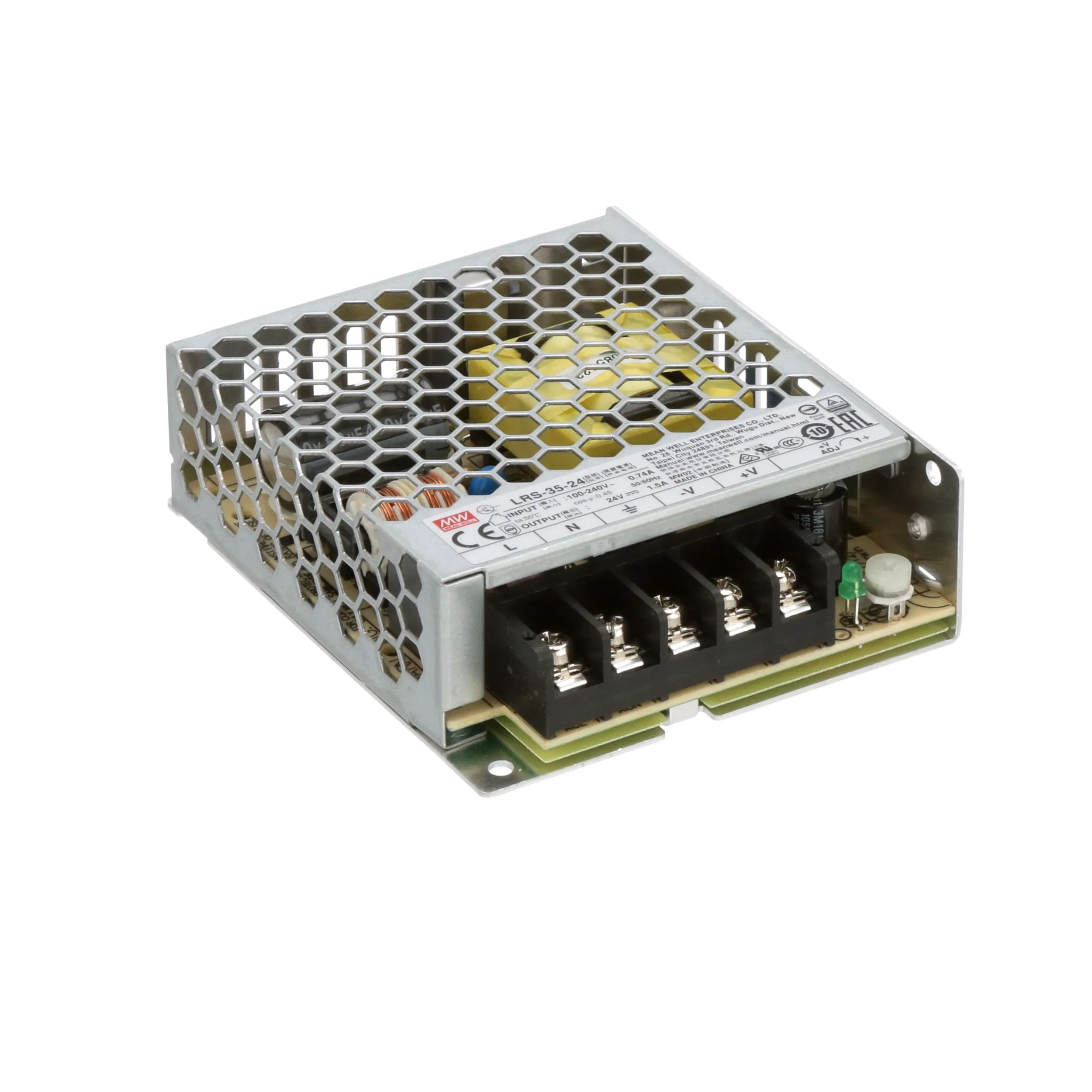

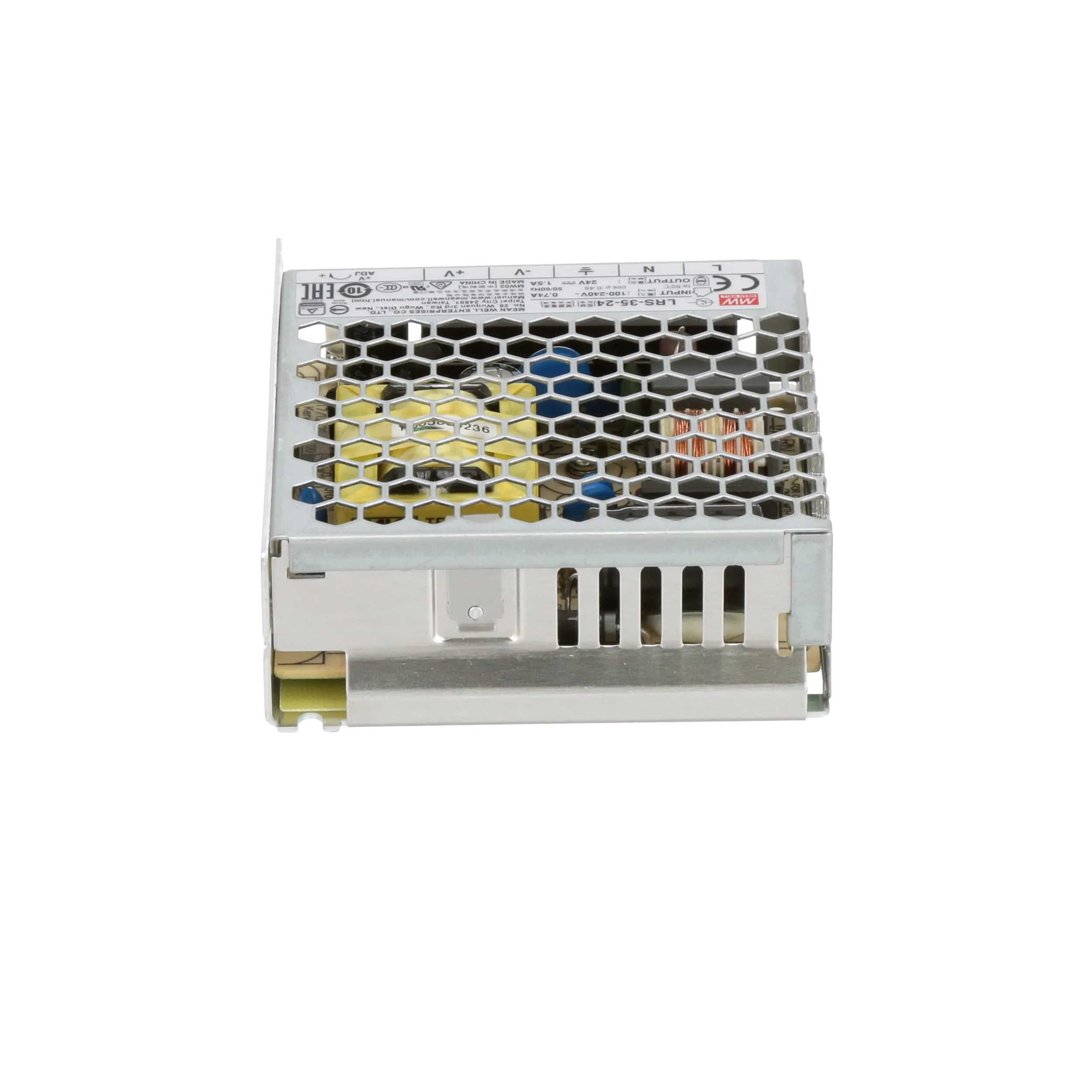

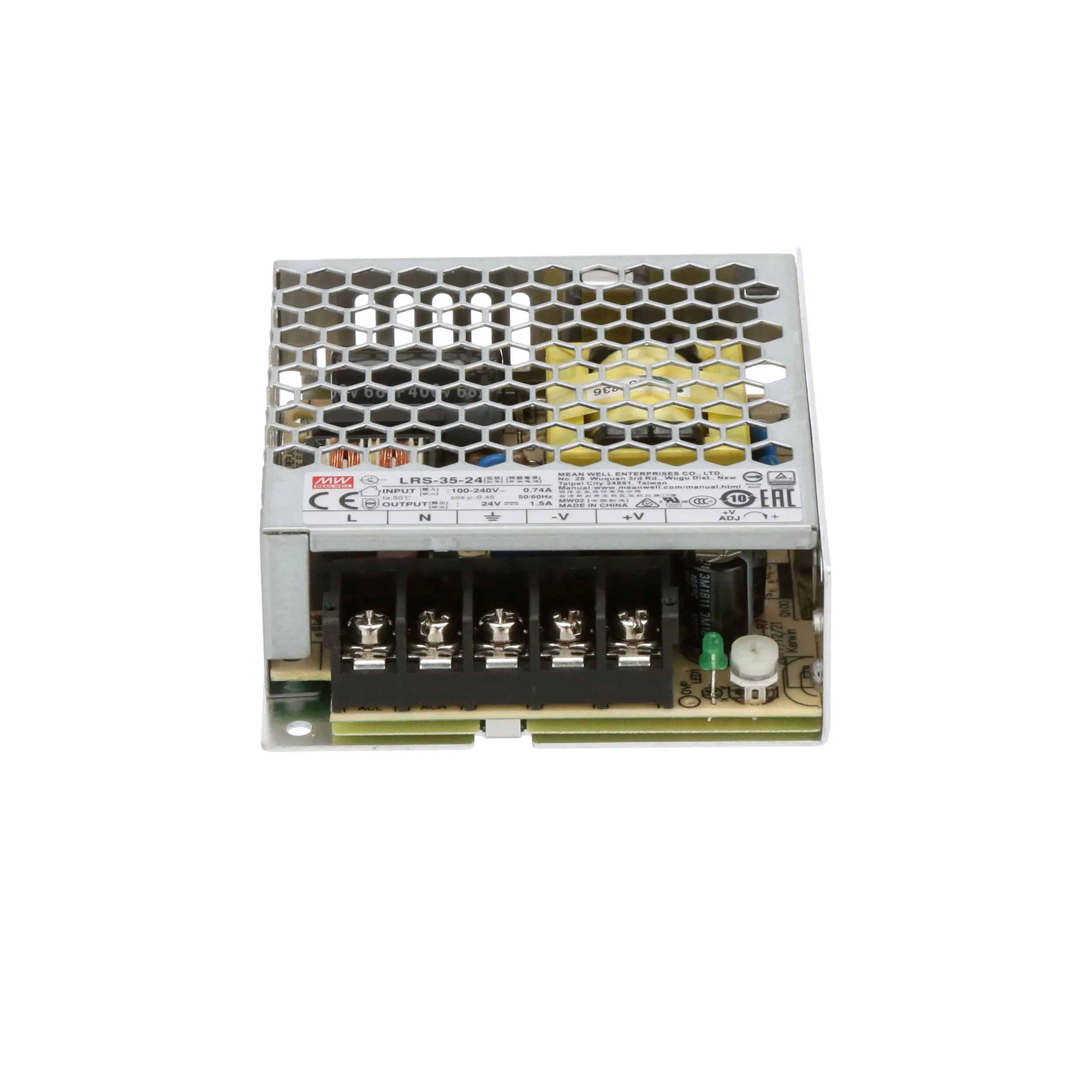

LRS-35 Series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85-264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89 percent, the design of metallic mesh case enhances the heat dissipation of the LRS-35 that the whole series operates from -30 deg.C through 70 deg.C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement. LRS-35 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-35 series serves as a high performance-to-price power supply solution for various industrial applications.
Features:
