| Product Attribute | Attribute Value |
|---|---|
| Configuration | Open Frame |
| Mounting Type | Cage Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 5 A |
| Output Power | 240 W |
| Output Voltage | 48 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Medical ; Industrial |
Overview

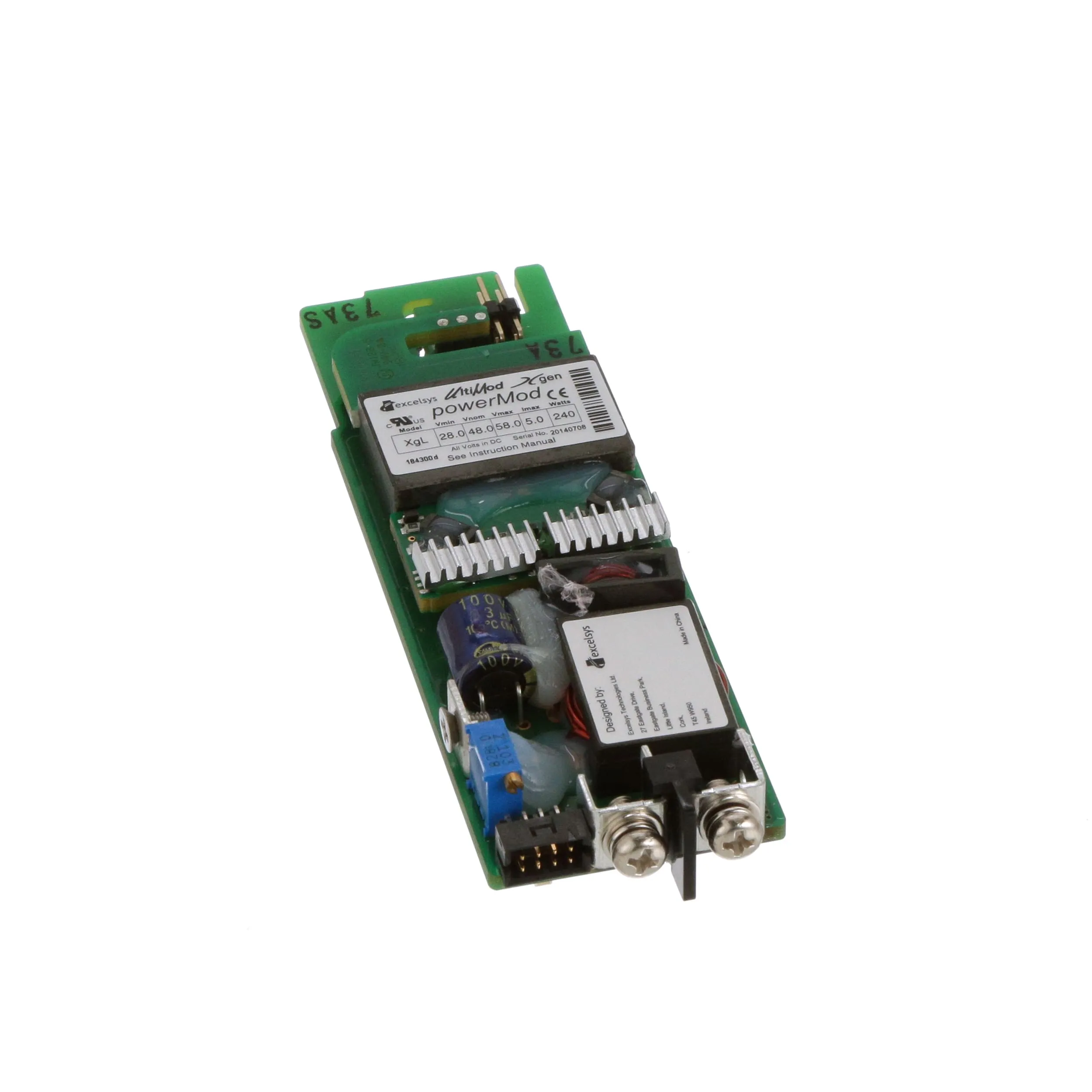

The UltiMod Series from Excelsys — the ultimate range of modular configurable power supplies provides up to 1200 W output power in a compact 1U form factor. The series is designed for highest efficiencies and consists of two input AC front ends (powerPacs), UX4 and UX6 and 11 DC output powerMods (XgA to XgL). Both powerPacs carry dual safety certification, EN60950 for Industrial Applications and EN60601-1 3rd Edition for Medical Applications. The UX4 delivers up to 600 W and can be populated with up to 4 powerMods. The UX6 delivers up to 1200 W and can be populated with up to 6 powerMods.
