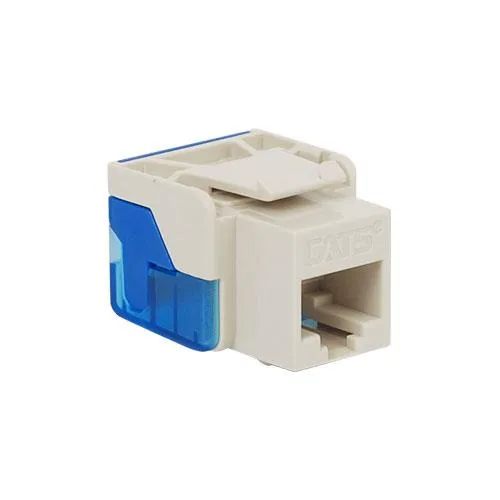

Category 5e EZ Category 5e modular jacks, RJ-45 keystone jack, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. Features:
CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidthPCB technology provides maximum performance and superior signal qualityEnhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signalsExceeds Category 5e industry performance requirementsTerminate with 110 punch down tool ICACSPDT00Designed with rear 110 IDC reducing termination timeIncludes an integrated TIA-568A/B color wiring diagram Backwards compatible to all lower rated category componentsCompatible with all ICC faceplates, inserts, surface mount boxes, and blank patch panelsCompatible with all ICC furniture faceplates, bezels, and surface mount boxesFor use with ICC Category 5e patch cords Installation instructions included UL listed25 packSpecifications:
Electrical:
Current rating: 1.5 amps
Insulation resistance: 500 mohms min.
Contact resistance: 20 mohms max.
DC resistance: 0.1 ohm max.
Transmission performance exceeds Category 5e connecting hardware requirements specified in TIA/EIA-568-B.2 when used with compatible horizontal cable
Mechanical:
Plug insertion life: 750 cycles min.
Plug and jack contact force: 100 grams min. using FCC approved plug
Plug retention force: 30 lbs min.
Temperature: -40 to 150 degrees F (-40 to 68 degrees C)
Physicals:
Housing: ABS, UL 94V-0
Jack wiring: 50 micro inches of gold over 100 inches of nickel
Connector: insulation displacement connector (IDC); accepts 22-24 AWG solid wire
Color White
