| Product Attribute | Attribute Value |
|---|---|
| Configuration | Open Frame |
| Input Voltage | 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | Panel Mount |
| Number of Outputs | 1 Output |
| Operation | PFC |
| Output Current | 25 A |
| Output Power | 607.5 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Industrial |
Overview

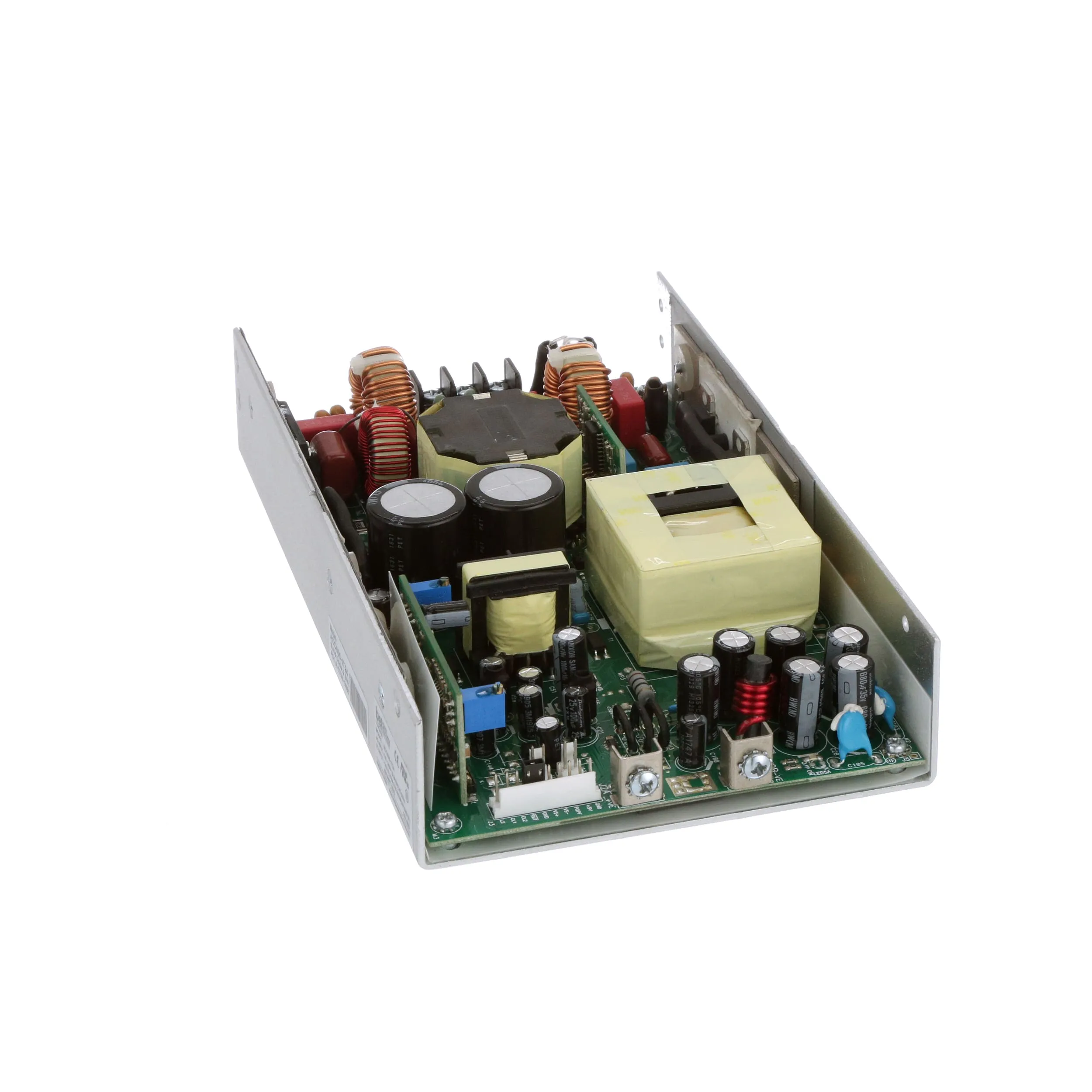

The ACC600 Series of open frame power supplies feature a wide universal AC input range of 85 – 264 VAC, offering up to 600 W of output power with convection cooling (U-Channel), in a compact footprint, with a variety of single output voltages. The high efficiency and high power density of the ACC series ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products.
5 x 8.5 x 1.61 Inch Form Factor
Convection Cooling Rated
Universal Input
Current Sharing
Open Frame
Peak Power Capability
5 V Stand by Provision
